Fluid Mechanics Experiment Equipment

Shaping Bench Vocational Education Equipment for School Lab Fluids Engineering Training Equipment

Description

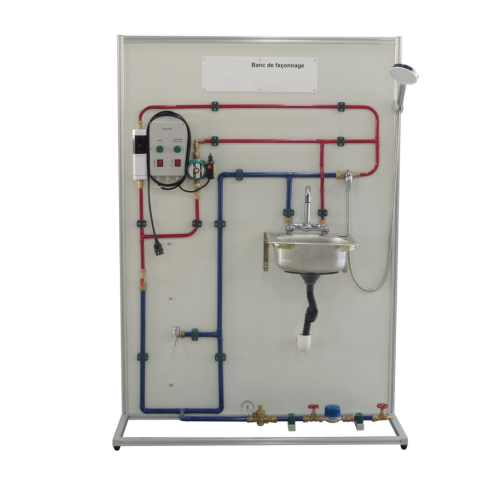

ZF0310 Shaping Bench Vocational Education Equipment for School Lab Fluids Engineering Training Equipment
I. Product Overview
Overview: The equipment is used to simulate the equipment simulation of domestic pipeline water, and simulate the use, connection and drainage of water heaters, water meters, faucets, etc.
Features: The equipment is built with an aluminum profile frame, and the panel is made of aluminum-plastic panels. All experimental devices are installed on the aluminum-plastic panels, which is convenient for experimental observation.
The electrical part is installed inside the waterproof box to ensure the safety and reliability of the experiment.

II. Performance Parameters

Name: Shaping Bench Vocational Education Equipment for School Lab Fluids Engineering Training Equipment
Brand: Jinan Should Shine Didactic Equipment Co., Ltd.
SKU: ZF0310
Availability: InStock
Rating: 5 (1 reviews)

Input power: AC220V±10% 50Hz
Weight: 100kg
Working conditions: temperature -10℃～+40℃, relative humidity <85% (25℃), altitude <4000m
Size: 1280*850*1750mm

III. Components List

Main part:

Number	Name
1	Pipe connector
2	Valve
3	Water meter
4	Pressure reducing filter valve
5	Faucet
6	Hot water safety valve
7	Circulation pump
8	Analog water heater
9	Control box
10	Double Control Mixing Valve
11	Sink
12	Drain pipe
13	Single Control Mixing Valve

IV. Experimental List

Experiment 1 Pipeline Connection
Experiment 2 Use of Water Meter
Experiment 3 Simulation of water heater use
Experiment 4 Use of double control mixing valve
Experiment 5 Use of single control mixing valve
