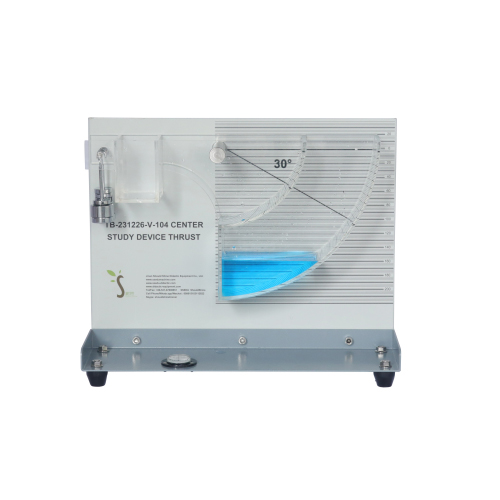

TB-231226-V-104 Center Study Device Thrust Educational Equipment Fluids Engineering Training Equipment 1. Equipment introduction
1.1 Overview
This product is mainly used to allow students to measure the torque generated by fluid thrust on a fully or partially immersed plane. Through experimental operations, students can understand the increment of weights and water volume, and master how to use the device.
1.2 Features
1. The larger the number of weights, the wider the weight range that can be measured. 2. It comes with a level bubble, which allows students to more easily keep the entire equipment level. 3. Adjustable feet make it easier to adjust the height of the device. 4. Printed with a scale plate, you can see the water volume more intuitively.
2. Technical parameters
size: 450mm*300mm*380mm weight: <50kg
3. Components list and detailed introduction
3.1 Main part:
No
Name
1
Weight plate
2
foot
3
horizontal bubble
4
Acrylic water tank
5
scale plate
6
Acrylic balance jar
3.2 Accessories
No
Name
Qty
1
measuring cup
1
2
syringe
1
3
dye
1
4
Weight plate
2
5
Weight (100g/20g)
35（10/25）
4. Experiment list
Experiment 1 Comparison of the incremental weight and water volume when horizontal Experiment 2 Comparison of the incremental weight and water volume at an angle of 30°
